750 W, 85 Nm, 8 speeds

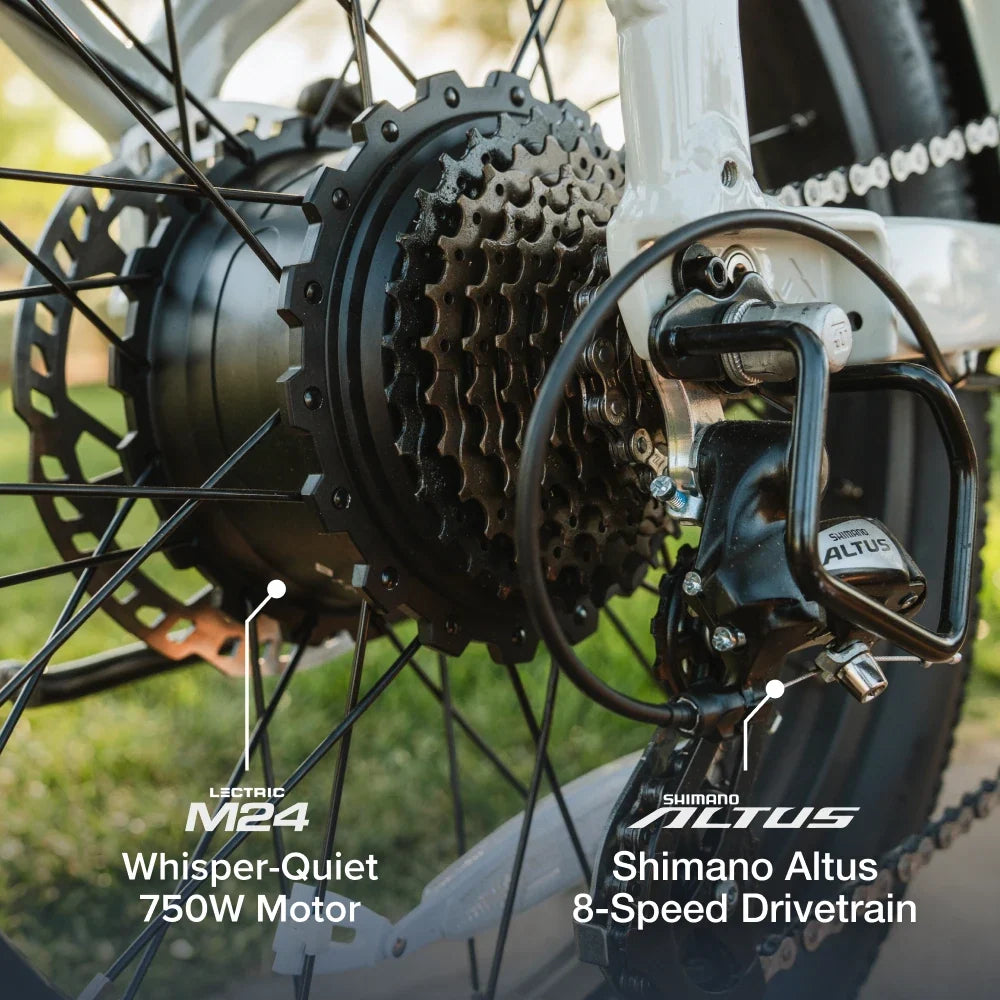

The Stealth M24 rear hub is rated 750 W nominal, 1,310 W peak and 85 Nm. It drives through a 56T chainring, a Shimano Altus 8-speed derailleur and an 11–32T freewheel with a trigger shifter.
Model 401-01582-B008
Lectric XP4 750 Long-Range Folding Electric Bike
A folding e-bike with an 840 Wh battery, 85 Nm and a 150 lb rack, folding to 37 × 17 × 29 in.
Price:$879.99Was $1,299.00Save $419.01
- Free shipping
- Taxes included
- Klarna at checkout
E-bike launch sale
Live now
9
Days
20
Hours
46
Min
19
Sec
Started
Ends
In stock · 15 availableships within 2 business days
Secure checkout · we never see your full card number
- 30-day returns Free return shipping
- Secure checkout Encrypted, card never stored
- 750 W (85 Nm) Motor
- 840 Wh Battery
- 85 mi Range
- 71 lb with battery Weight
What's included
- XP4 750 e-bike with 840 Wh battery
- Integrated rear rack
- Fenders
- Front and rear lights
- Color display
- 2 A charger
Sold separately
Not included, so you are ready on delivery day:
- 5 A fast charger
- LevelUp Rack
- Suspension seat post
Shipping & delivery
Free shipping to every US address. Orders leave our North Chicago, IL warehouse within 0–2 business days and arrive 5–8 business days after dispatch. A tracking link is emailed as soon as the carrier scans your order.
Your order may arrive in separate boxes rather than one package.
Returns & warranty
30-day returns. Email support@pallmilla.com with your order number within 30 days of delivery to start a return. Return shipping is on us. No restocking fee. Refunds go back to your original payment method.
Arrived damaged? Tell us within 7 days after delivery and we will replace or refund it.
Questions before you buy? Ask a real person. support@pallmilla.comReplies within 24 hours, Mon–Fri
Lectric XP4 750 Long-Range Folding Electric Bike
$879.99
Ride data Lectric
XP4 750 Long-Range, by the numbers.
Folding · Rear hub motor · 20 × 3.0 in
- 20 mph default
- 28 mph pedal assist in Class 3
- Class 1 Pedal assist to 20 mph Available
- Class 2 Throttle to 20 mph Available
- Class 3 Pedal assist to 28 mph Available
Runs as Class 1, 2 or 3 where state law allows: throttle to 20 mph, pedal assist to 28 mph. Class rules vary by state and trail; check yours before raising the speed.
- Motor 750W 1310 W peak
- Torque 85Nm What you feel on a climb
- Battery 840Wh 48 V, 17.5 Ah, removable
- Range 85mi Max per charge
- Bike weight 71lb Carries up to 330 lb total · rack 150 lb
- Folded 37 × 17 × 29 in Front fork with lockout · Hydraulic, 180 mm
Bars compare each figure with the highest among the e-bikes we carry.
Range and charging
Up to 85 miles on a charge.
- Max range
- 85mi
- Battery
- 840Wh
- Full charge
- 7–9h
Charger
2 A included; optional 5 A in about 3.5 h
Range goes down with
- Higher assist levels and throttle use
- Hills and headwinds
- Cold weather
- Heavier rider and cargo loads
- Low tire pressure
Commute check
- At max range
- … round trips per charge
Max range divided by your round trip, rounded down. Hills, cold and higher assist mean fewer trips.
Fit
One frame size.
Rider height range for this frame. Slide to your height to check it.
- One size4'10" – 6'3" 24 in standover
The Lectric XP4 750 is a folding e-bike with a 750 W rear hub motor rated at 85 Nm and 1,310 W peak, and a removable 48 V, 17.5 Ah (840 Wh) battery with up to 85 miles of range. It runs 20 × 3.0 in pre-slimed tires, hydraulic discs with 180 mm rotors, an 8-speed Shimano Altus drivetrain and a 3.5 in colour display, and it folds to 37 × 17 × 29 in. It carries up to 330 lb.
- Motor
- 750 W (85 Nm)
- Battery
- 840 Wh
- Range
- 85 mi
- Weight
- 71 lb with battery
Is it right for you?
A good fit if you…
- Need a bike that disappears when you are not riding it: a hinge in the frame and another in the stem, plus quick-release pedals and a telescoping seat post, fold it to 37 × 17 × 29 in for an RV, a boat or a hall cupboard.
- Want the most range from a small-wheel folder: the 750 trim pairs an 840 Wh battery with the bigger motor for up to 85 miles, against 50 miles on the standard 500 W XP4.
- Carry cargo or a passenger. A 150 lb rear rack is built into the frame, payload is 330 lb, and the rack has bosses for a child seat or the optional LevelUp rack.
- Want a throttle and 28 mph capability. This is not a pedal-only bike.
Look at something else if you…
- Have to carry it upstairs daily. It weighs 62 lb without the battery and about 71 lb with it.
- Want plush suspension. There is a front fork with adjustable preload and lockout, but no rear suspension.
- Are taller than 6'3" or shorter than 4'10". That is the full rider height range.
- Want a belt drive or an internally geared hub. This is a chain and a Shimano Altus derailleur with an 11–32T freewheel.
What you get
840 Wh, and it slides out for charging indoors
The battery is a 48 V, 17.5 Ah, 840 Wh pack certified to UL 2271; the bike is UL 2849. It unlocks from the side of the down tube with a key, and you can ride without the key in it. An auxiliary charging port near the bottom bracket lets you charge it in the bike.
Hydraulic brakes and a lockout fork
Lectric's 20 × 3.0 in mixed-terrain tires come with Slime sealant already inside. Stopping comes from 602 hydraulic brakes with 180 mm rotors, 2.3 mm thick. The front fork has adjustable preload and a lockout, and the front end folds on a hinge below the stem.
Folds to 37 × 17 × 29 in
Folded it measures 37 L × 17 W × 29 H in; unfolded it is 66 L × 18.5 W × 47 H in. The pedals come off with quick-release splines and the seat post drops out for transport. It weighs 62 lb without the battery and about 71 lb with it, and arrives fully assembled: unfold it, fit the pedals and set the bars.
Five assist modes and a colour screen
Eco, Tour, Sport, Sport+ and Turbo are selected from a detachable, backlit 3.5 in TFT display with a USB-C port for a phone. A torque sensor sets assistance by how hard you pedal. The display and the potted controller are IP-X5 rated.
Specifications
Motor and speed
- Motor
- 750 W rear hub (Stealth M24)
- Peak power
- 1,310 W
- Torque
- 85 Nm
- Top speed
- 28 mph
- Class
- Class 1, 2 or 3 operation, where state law permits
- Assist
- 5 modes: Eco, Tour, Sport, Sport+, Turbo
- Sensor
- Torque sensor
- Throttle
- Left-hand thumb trigger, below the bar
Battery
- Battery
- 48 V, 17.5 Ah, 840 Wh, UL 2271 certified
- Removable
- Yes, side-facing key port; keyless riding
- Battery weight
- 9 lb
- Range
- Up to 85 miles
- Charger
- 2 A included, 7–9 hours; 5 A fast charger optional, about 3.5 hours
- Charging
- In frame via auxiliary port, or battery removed
Ride
- Fork
- Front suspension, adjustable preload and lockout
- Brakes
- 602 hydraulic disc, 180 mm rotors, 2.3 mm thick
- Tires
- Lectric 20 × 3.0 in mixed terrain, pre-slimed
- Drivetrain
- Shimano Altus 8-speed, 11–32T freewheel, trigger shifter
- Chainring
- 56T forged aluminium, KMC Z8 chain
- Frame
- 6000 series aluminium, folding at frame and stem
- Display
- 3.5 in TFT colour, detachable, USB-C, IP-X5
- Lights
- 90 lumen headlamp with amber side lights; brake-activated rear light; turn signals
- Fenders
- Polypropylene, front and rear, included
Size and limits
- Weight
- 62 lb without battery; about 71 lb with the 9 lb pack
- Max load
- 330 lb total
- Rear rack
- Integrated, 150 lb capacity, 13.5 × 6.5 in; LevelUp rack optional
- Folded
- 37 L × 17 W × 29 H in
- Unfolded
- 66 L × 18.5 W × 47 H in
- Rider height
- 4'10"–6'3"; stand-over 24 in, handlebar 25 in wide, reach 15–18 in
- Saddle height
- 29.5–42 in from the ground
- Colors
- Step-Over and Step-Thru frames in several colors; email us to confirm the frame and color before ordering
- Included
- Integrated rear rack, fenders, battery and charger, TFT display, front and rear lights; delivered fully assembled
- Certifications
- UL 2849 (bike), UL 2271 (battery), ISO 4210 tested
In the box
Included
- XP4 750 e-bike with 840 Wh battery
- Integrated rear rack
- Fenders
- Front and rear lights
- Color display
- 2 A charger
Not included
- 5 A fast charger
- LevelUp Rack
- Suspension seat post
Questions buyers ask
How far does it go on a charge?
Up to 85 miles from the 840 Wh battery. The standard XP4 with a 500 Wh battery goes up to 50 miles. Higher assist, throttle use at 28 mph, hills, heavier loads and cold weather reduce range.
Is it a Class 2 bike or a Class 3 bike?
The five modes let it run as a Class 1, 2 or 3 e-bike where state law allows, with a top speed of 28 mph. With the throttle it is a Class 2 bike at 20 mph; 28 mph pedal assist is the Class 3 setting. Some states and many trail systems restrict Class 3 and throttle use, so check your local rules.
Can I actually get it into a car?
Folded it is 37 × 17 × 29 in, which fits a hatchback, an SUV or an RV bay. It weighs 62 lb without the battery, plus the 9 lb battery. Removing the battery, the quick-release pedals and the seat post makes it easier to lift.
Will it fit me?
It fits riders from 4'10" to 6'3", with a 24 in stand-over, 15–18 in of handlebar reach and a seat height range of 29.5–42 in. The stem telescopes as well as folding. There is one frame size; fit is set through the seat post and stem.
What is included, and what is extra?
In the box: the integrated rear rack, polypropylene fenders, front and rear lights, the TFT display, the battery and a 2 A charger. It arrives fully assembled. Sold separately: the LevelUp rack, a suspension seat post, the 5 A fast charger and child seats.
How long does it take to charge?
Seven to nine hours on the included 2 A charger, or about 3.5 hours on the optional 5 A fast charger. The battery comes out with a key for charging indoors, or you can charge it in the bike through the port near the bottom bracket.
Compare
Every e-bike we carry, side by side.
Range, battery, torque and weight for each bike.
-
Viewing
Lectric · Folding
XP4 750 Long-Range
- Range
- 85 mi
- Battery
- 840 Wh
- Torque
- 85 Nm
- Weight
- 71 lb
-
Aventon · Commuter
Level 4 REC
- Range
- 75 mi
- Battery
- 733 Wh
- Torque
- 80 Nm
- Weight
- 68.5 lb
-
Aventon · Step-through cruiser
Pace 5 REC
- Range
- 75 mi
- Battery
- 733 Wh
- Torque
- 80 Nm
- Weight
- 60.5 lb
-
Aventon · Fat-tire all-terrain
Aventure 3
- Range
- 65 mi
- Battery
- 733 Wh
- Torque
- 80 Nm
- Weight
- 76 lb
-
Velotric · Step-through commuter
Discover 2
- Range
- 75 mi
- Battery
- 706 Wh
- Torque
- 75 Nm
- Weight
- 63 lb
-
Velotric · Hardtail e-MTB
Summit 1
- Range
- 70 mi
- Battery
- 706 Wh
- Torque
- 90 Nm
- Weight
- 62 lb
-
Lectric · Folding
XP4 500
- Range
- 50 mi
- Battery
- 500 Wh
- Torque
- 55 Nm
- Weight
- 68 lb
Riding rules, delivery and returns
Where am I allowed to ride it?
Your state and city decide, by class. Class 1 assists only while you pedal, to 20 mph. Class 2 adds a throttle, also to 20 mph. Class 3 assists pedalling to 28 mph and is restricted or banned on bike paths in several states. Many trail systems allow Class 1 only. Check the rules where you ride before you raise the speed setting.
How is an e-bike delivered?
Shipping is free to US addresses. Orders leave our warehouse in North Chicago, IL within 0 to 2 business days and arrive 5 to 8 business days after dispatch. You get a tracking link by email as soon as the carrier scans your order. Your order may arrive in separate boxes rather than one package.
How do returns work?
Email support@pallmilla.com with your order number within 30 days of delivery and we will confirm your return and send instructions. Return shipping is on us, with no restocking fee. Refunds go back to your original payment method.
Can I pay in installments?
If your order is eligible, you will see Shop Pay Installments or Klarna as payment options at checkout.
How do I reach you?
Email support@pallmilla.com. A real person replies within 24 hours, Monday to Friday. Online support only.
